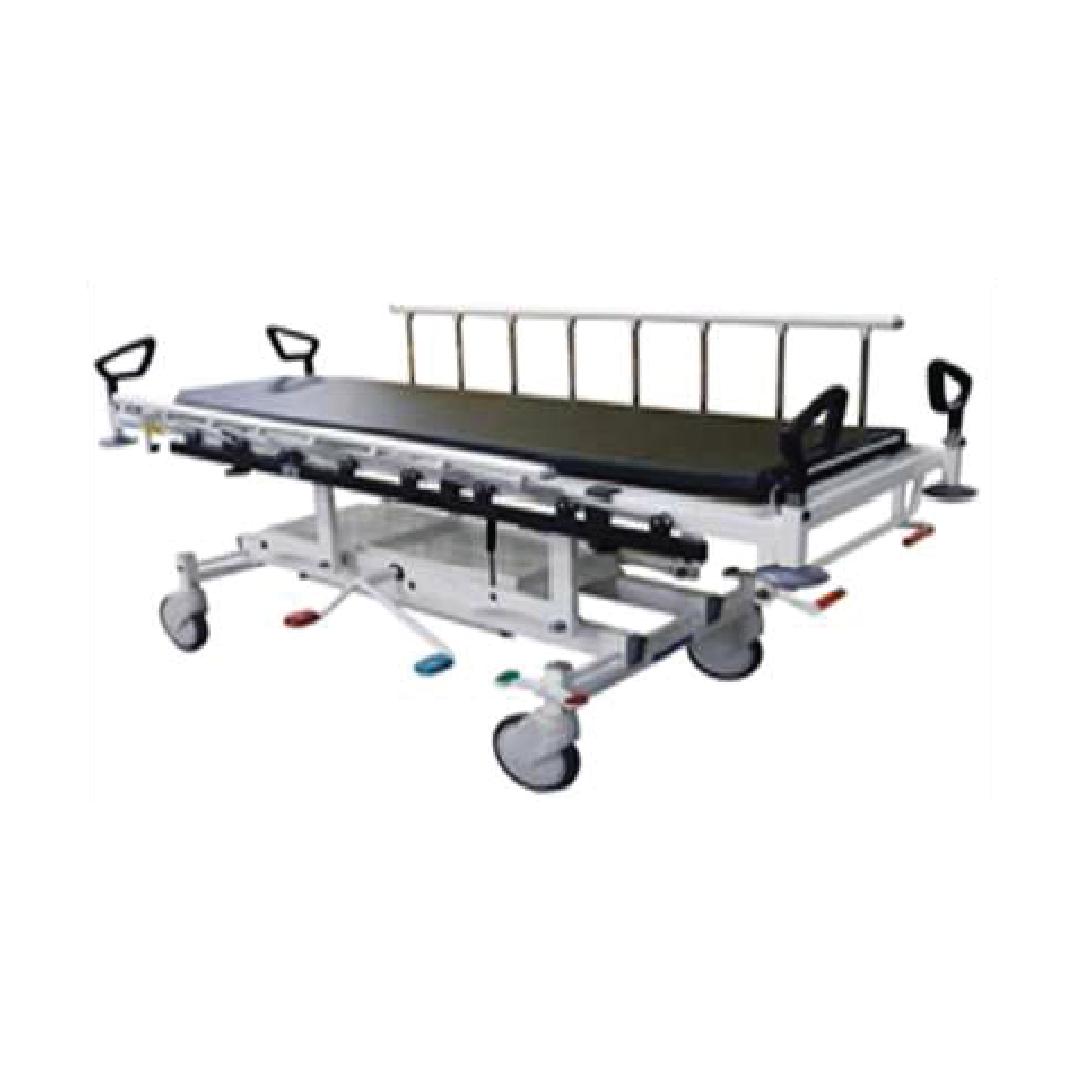

MODEL : TR2001 – GTE

MATERIAL : MILD STEEL FRAMEWORK

TREATMENT : ZINC-PHOSPHATE WASHING

FINISHING : EPOXY POWDER COATING

DIMENSION : L2145 x W890 x p05-1010mm

NETT WEIGHT : 130kg

LOAD CAPACITY : < 250kg

CASTOR DIA. : Ø8" / 200mm swivel castor with central locking



Features :

• Backrest (75°) elevation operated by gas lift
• Hi-Lo elevation operated by hydraulic foot pedal
• 2-way Tilting – Trendelenburg (12°) & Reverse Trend (6°) by gas activation
• Collapsible PU handle bar, at both end of trolley
• Collapsible Epoxy-finish safety side rails with latch lock (Dim : L1525 x H415mm)
• 50mm foam mattress with PVC covering
• Oxygen tank holder (‘E’ size)
• Stainless Steel IV Pole with double hook
• 4 IV pole attachment
• Ventilated 2-panel mattress base
• Roller bumpers at all corners, to protect body frame
• IV Pole (IVP 1)
